Casa /Prodotti/Motore a vibrazione senza spazzola/Micro Electric Massager 3.0V Miniature K20 Powerful Strong Vibrating Motor

Micro Electric Massager 3.0V Miniature K20 Powerful Strong Vibrating Motor

100 Pieces
MOQ
$4.00(100 - 999 Pieces) $3.20(1000 - 9999 Pieces) $1.25(10000 - 29999 Pieces) $1.08(>=30000 Pieces)
prezzo
Micro Electric Massager 3.0V Miniature K20 Powerful Strong Vibrating Motor
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 3months-1year
Model Number: IND-YZ20F-3442
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance
Type: Micro Motor
Construction: Permanent Magnet
Commutation: Brush
Speed(RPM): 19,500±15% rpm
Continuous Current(A): 200 mA Max
Efficiency: Other
Motor Type: Powerful Vibrating Motor
Typical Applications: Massager, medical device, cosmetic and beauty product
Green product: ROHS/REACH compliant
Certificazione: ISO9001,ISO14001,ISO18001, RoHS
Rated Load: R3.4x4.2
Stall current: 800 mA Max
Starting Voltage: 1.2V Max
Axial End Play: 0.05-0.25mm
Operating Temperature: 8.-30℃ ~ +70℃
Keywords: mini vibrating motor
Informazioni di base
Certificazione: ISO9001,ISO14001,ISO18001, RoHS
Model Number: IND-YZ20F-3442
Termini di pagamento e spedizione
Packaging Details: 5000 pcs per carton, carton size 345mm*290mm*150mm
Supply Ability: 400000 Piece/Pieces per Month
Descrizione di prodotto
Product Description

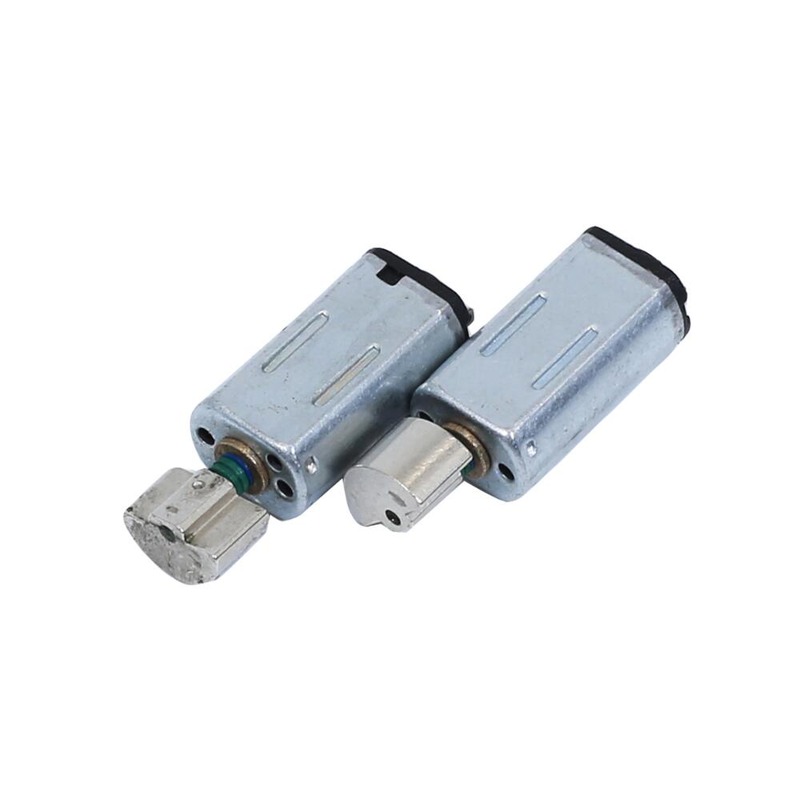

3.0V K20 Electric Micro Miniature Powerful Strong Vibrating Motor

1) Electrical performance

• Rated Voltage: 3.0V

• Rated Load:R3.4x4.2

• Rated speed:19,500±15% rpm

• Rated current:200 mA Max.

• Stall current:800 mA Max.

• Starting Voltage:1.2V Max.

• Axial End Play:0.05-0.25mm

2) Product Drawing

3) Product Details Show

This product is widely used in:

Medical equipment: smart medicine box, blood pressure monitor, blood glucose meter

Cosmetic & beauty industry product: electric cosmetic pen, facial cleansing brush, facial massager, eye care massager

Electric toy: aeromodelling, mini drone, quadcopter, aircraft

Vibrator: contact lens cleaner, electronic devices, sex product, mobile phone

Servo, precise instruments, robot

You also could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.

Company Information

Manufacturing all kinds of micro motor for over ten years. These motors are widely used in telecommunication devices and health-care products, medical devices and robotic products. Monthly capacity over 15 million motors.We have been making the best efforts to become one of the leading micro motor manufacturers in this industry. By investing ten percent of our annual revenue into R&D as well as advanced facilities, we continue to grow stably.Our mission is to produce cost effective products with good quality to satisfy ourcustomers worldwide. This is the target we aim at now and forever......

1) Competitive Advantages

  • Experienced Staff: average 7-year experience in R&D
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Small Orders Accepted
  • Short Lead Time 2-3 Weeks
  • International Approvals: ROHS/ISO9001:2015, ISO14001:2015, OHSAS18001:2011

2) Production workshop (Part)


Worshop site 1 Worshop site 2

3) Testing equipments

4) Packing & Shipping

Packing Details

100pcs per tray, 12 trays per carton, 1200 pcs per carton
Carton size: 34cm*34cm*21cm
Gross weight: 5.5kgs/ carton
Inner box bubble, then carton. And then reinforced with plastic pallet for outer packing. Or according to client's requirement.

Shipping Details

Samples Can be shipped within 10 days.

Mass production order leading time according to the actual situation.

5) Contact Information

SHENZHEN INEED YOUNGSUN TECHNOLOGY CO.,LTD.

TEL:+86-0769-2289 1073 FAX:+86-0769-228 1069


CHINA OFFICE:

Room 4-1904, Yuan Meng Ya Ju, Zongbu 3rd Road, Songshanhu North Hi-Tech Park, Dongguan, Guangdong 523808 ,China.

www.ineedmotors.com

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you.

3.What is your MOQ?

Our MOQ is 1000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

6.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

7. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

8. How do contact us ?

Please send an inquiry .
