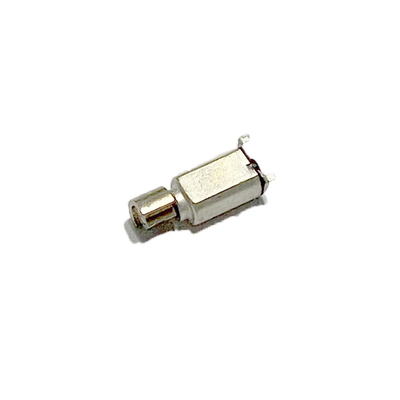

Portable Low Current Electrical Device S3Z06B846-001 SMD 2.7V Vibration DC Cylindrical Motor For Medical Device

100 Pieces
MOQ
$1.28(100 - 999 Pieces) $1.22(1000 - 9999 Pieces) $1.18(>=10000 Pieces)
prezzo
Portable Low Current Electrical Device S3Z06B846-001 SMD 2.7V Vibration DC Cylindrical Motor For Medical Device
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: S3Z06B846-001
Warranty: 3months-1year
Type: Cylindrical Vibration Motor
Customized: No
Rated Speed (r/min): 15000
Nominal Voltage: 2.7
Application: Wearable device, Mobile phone, Medical device etc
Diameter (mm): 3.05
Body (mm): 6.5
Overall (mm): 11
Operating Voltage (Vdc RMS): 2.3~3.2
Rated Current MAX (mA): 85
Typical Current (mA): 67
Vibration Force (G): 0.55
Certificazione: None
Informazioni di base
Certificazione: None
Model Number: S3Z06B846-001
Termini di pagamento e spedizione
Packaging Details: 4,000 pcs per carton, carton size 460mm*285mm*160mm 8,000 pcs per carton, carton size 460mm*285mm*305mm
Descrizione di prodotto
Product introduction
Product name:
Low current SMD 2.7V Electric Cylindrical Vibration DC Motor for Medical Device

Below is a table of the most common types of cylindrical vibration motors we manufacture. Prices are primarily determined by the diameter of the body. Generally speaking, our 6mm diameter types are the lowest cost, followed by 4mm diameter which are approximately 10% higher in price. Our 7mm diameter vibration motors are approx. 20% higher than our 4mm types. Connectors and rubber sleeves / boots may be added to most leaded parts. Contact us for quote.
Products Description
Show Me All Products (Shown below are only six models of them:S3Z06B819-12L; S3Z07B879-16L; S3Z07B879-98L; S3Z07B819-13L; S3Z08B288-01D; S3Z06B846-001. If you want to know about other models, please email us.)
SAIBOW P/N
Installation method
Motor Size
Voltage
Current
Rated speed (rpm)
Vibe Force (G)
Dia / Hgt
Body
Overall
Operating(VDC)
Rated (ma) MAX
Typical* (ma) Avg.
Leadwire / FPC / SMD
(mm)
(mm)
(mm)
S3Z06B819-12L
SMD
3
6.85
11
2.3~3.5
75
54
14000
0.55
S3Z07B879-16L
Leadwire
3
6.9
12.4
2.2~2.6
220
170
11000
0.95
S3Z07B879-98L
Leadwire
3
7
10.8
2.3~3.7
80
58
14000
0.7
S3Z07B819-13L
FPC / SMD
3
7.1
11.7
2.3~3.2
85
64
13000
0.4
S3Z08B288-01D
Spring
3.2 / 3.8
8.2
12.4
2.4~3.6
90
64
13000
0.95
S3Z06B846-001
SMD
3.05
6.5
11
2.3~3.2
85
67
15000
0.55
The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.
MOUNTING CONFIGURATIONS OF VIBRATION MOTORS
LRA Structure:
Product Drawing:
Application scenario
If you think our product is not suitable for you, you can click below to find the product you want: DC Micro Motor Coin Vibration Motors Cylindrical Vibration Motors BLDC&Linear(LRA) Vibration Motors
Recommend Products
Company Profile
SAIBOW is based on Hong Kong and other emerging industrial markets in the Pearl River Delta, specializing in high-end automotive electronic products, communications mech-
anical and electrical parts of technical research and development, production and sales, international trade as one of the multinational enterprises, consumer comm- unications smart wearable electronic products, to provide domestic and foreign customers with high quality and cheap micro motors, Micro Camera modules, car speakers and smart audio, smart wearable watch (Smart Watches).


SAIBOW With the management policy of
"pioneering and innovative, positive and enterprising, teamwork, professional and pragmatic", SAIBOW is willing to establish a friendly and honest partnership with all customers, and sincerely welcome new and old customers to work hand in hand to strive for win-win, and seek sustainable development of the cause.
Production Workshop
Payment & Shipping
● Trade Assurance: The first order, we suggest you to use Trade Assurance.
● T/T: If stocks, 100% payment before shipping; if customized order, 30%  deposit deposit before production and balance 70% should be paid before delivery.
● Western Union, Money Gram, Paypal, all available.
● L/C: for large order.
● In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
● Large order: by air or sea, you could choose it.
● If you have your own forwarder, please tell us the detailed information.
MOTOR TRANSPORT
OCEAN SHIPPING
AIR TRANSPORT
FAQ
1. How long is the deliver and shipping? A: Deliver time depends on the quantity you order. usually it takes 15-25 working days. 2.Do you provide the samples? A: YES. Our company can provide the samples to you. 3. Do you have the item in stock? A: I am sorry we donot have the item in stock, All products are made with orders. 4. How can I know the product is suitable for me? A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 5.How to ship to us? A: We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
